Practix OK-160
Draw Slide Press
Practix OK-160 draw slide machines are specially designed to suit the needs of many types of manufacturing and printing operations including dye sublimation and heat transfer printing on a large variety of substrates. The OK-160 is an automatic heavy-duty press. With its large airbags, the machine is able to print onto materials with decreased dwell times supplying a large amount of pressure. These presses are perfect for the transferring into flags, all over garments, mouse pads, leggings, and more products that require a high level of fusing pressure while maintaining high productivity. Like all Practix heat transfer equipment, the drawer slide line is made from a heavy duty steel-forged frame, and its simple unitized design gives it an unsurpassed durability and stability for precise printing.
Extremely simple in operation, minimum physical effort, and high productivity are the result of the drawer slide system. With this system, the tray pulls away from the heat source for loading and unloading. Optional reciprocating tray system is available for this model for even higher productivity. With this system, one tray is under the print head while the other is available for loading. Premium quality printing is achieved due to the electronic temperature and time control system. A high watt density heater on the platen allows the heater to heat up faster and maintain consistent temperature during production.
Some benefits of the Practix machines include:
- Simple operation requiring little physical effort
- No need to slide trays back and forth
- Precision electronic temperature controller with digital display to prevent any temperature inconsistencies
- Timer with duty cycles of 1/10th of a second durations for consistency and quality of work
Upgrade Options Include:
- Top and bottom heat with individual temperature control settings
- Reciprocating tray which provides a two work station set up: one working surface loads while the other presses
Specifications of the OK-160 include:
- Platen dimensions: 32” x 42” and 42” x 66”
- Fusing pressure: 100 psi
- Air line pressure: 100 psi
- Power requirements: 240 V, 1 Phase
- Connected load up to 40 Amps
All of our equipment is customizable to suit your specific size and color requirements. Practix backs up all of its heat transfer equipment, including dye sublimation, laminating, and embossing machines, with one-year mechanical and electrical warranties.
In addition, we offer next day and worldwide shipping, so whether you make hats in Baltimore or t-shirts in Hong Kong, we get supply you with the top-quality heat transfer machines in the industry.
Call or e-mail us today to discuss our affordable fabric sublimation equipment for your business.
Click to see brochure
Order Parts:
| Name | Image | Summary | Bin | Price | Buy |
|---|---|---|---|---|---|
| 10-123 |  | Air bag 18.1 dia | Z-2123 | $1,540.00 | |
| 10-305 |  | Filter Regulator w/nut & bracket | C-4-1-1 | $170.10 | |
| 10-500 |  | PSI Panel Gauge | C-3500 | $58.60 | |
| 10-601 |  | Quick Exhaust Valve | C-5 | $94.32 | |
| 10-709 |  | Fitting Stgt 3/8 Hose 1/4 NPT Ma | BB-1709 | $9.10 | |
| 10-721 |  | Fitting Elbow 3/8 Hose 1/4 NPT | BB-1721 | $14.64 | |
| 10-735 |  | Fitting Tee 3/8″ Hose 1/4″ NPT | BB-2735 | $21.48 | |
| 10-747 |  | 3/8″ Muffler with Flow Control | BB-3747 | $32.10 | |
| 10-754 |  | Fitting 3/8″ Muffler | BB-3754 | $55.08 | |
| 10-781 |  | Flex 1/2″ Straight Conduit | O-3781 | $15.48 | |
| 10-782 |  | Flex 1/2″ Elbow 90 Deg | O-3782 | $24.10 | |
| 10-901 |  | Air Tubing | ELECTRICAL | $492.10 | |
| 10-904 |  | Flexible liq tight conduit 1/2 | ELECTRICAL-1 | $7.10 | |
| 20-1001 |  | Fuse | $12.10 | | |
| 20-1012 |  | Fuse NON 60A | B-31027 | $11.00 | |
| 20-1013G |  | Panel Fuse Holder | B-2-2 | $24.50 | |
| 20-102 |  | Temperature Controller (Machine with No Touchscreen) | G-3 | $525.20 | |
| 20-1121 |  | Power Dist. Block 175A 2 Pole | C-3 | $104.10 | |
| 20-1402 |  | 8 AWG HI TEMP WIRE PER FOOT 450DEG C | $14.10 | | |
| 20-1403 | | Hi Temp Wire 10 AWG per foot 450DEG C | ELECTRICAL1402 | $8.45 | |
| 20-1410X4 |  | Jumper Wire 4″ with ring terminal ends | $16.20 | | |
| 20-1410X8 |  | Jumper Wire 8″ with ring terminal ends | $32.50 | | |
| 20-1419a |  | Thermocouple sleeve | ELECTRICAL-2 | $3.84 | |
| 20-1420 |  | Thermocouple Wire. Price Per FT. | ELECTRICAL-4 | $7.10 | |
| 20-1429b |  | 10 awg black 600 VAC Wire | ELECTRICAL1429B | $3.33 | |
| 20-200 |  | Timer | G-3-1 | $482.10 | |
| 20-2001-15415-100024 |  | Heater 1.5″ x 41.5″ 1000/240 | F-22034A | $266.10 | |
| 20-2003-3415-2400240 |  | Heater Element OK-160 42X66 3″ X 41.5″ | F-6-1 | $506.24 | |
| 20-201 |  | Timer Socket | G-3-2 | $18.10 | |
| 20-202 |  | Plastic Timer Holder | G-3-3 | $50.10 | |
| 20-2180 |  | Heater Element OK-160 42X66 U SHAPE 0.44″ DIA X 41.5″ | F-6-1-1 | $229.20 | |
| 20-2205 |  | MOV 230VAC FOR 240VAC COIL CONTACTOR | EL1-1 | $34.20 | |
| 20-2205-1 |  | MOV 24VDC FOR 24VDC COIL CONTACTOR LS9-LS100 | EL1-1-1-1 | $34.20 | |
| 20-2205A | | MOV 115VAC FOR 120VAC COIL CONTACTOR | EL1-1-1 | $26.20 | |
| 20-2500 |  | End stop for terminal block | A-2-5 | $7.10 | |
| 20-2503 |  | Terminal Block | A-22503b | $7.10 | |
| 20-3101 |  | N.O. Contact Block GE | A-23101 | $21.20 | |
| 20-3101b |  | N.C. Contact Block STOP Button | A-23101b | $15.20 | |
| 20-313 |  | Heat Contactor (Non Touchscreen Machine) | G-4319 | $340.00 | |
| 20-3307c |  | Enclosure 8″ x 8″ x 4″ | B-63307c | $60.20 | |
| 20-340 |  | Relay Base Mini DPDT 96.72 | H-3516 | $54.20 | |
| 20-341 |  | Snubber for Heat Contactor coil 24VDC | H-4 20-341 | $54.20 | |
| 20-403 |  | Transformer 150VA 1 Phase | H-5407G | $460.20 | |
| 20-502socket |  | Relay Base Mini DPDT 96.72 | H-3-1 | $19.30 | |
| 20-503 |  | Mini Relay | H-3506 | $43.60 | |
| 20-602 |  | Switch roller | B-2733a | $132.90 | |
| 20-726 |  | ON/OFF | A-5-1 | $13.80 | |
| 20-727 |  | On/Off Sign | A-5742 | $7.59 | |
| 20-909 |  | Fuse Block 60A 250V 2 Pole | B-5 | $334.90 | |
| 30-1100-R4 |  | Bearings R4 | $28.14 | | |
| 30-1260-30 |  | 30″ 500# Full ext slide set | K-11306 | $378.81 | |
| 30-306 |  | Black Knobs 1/4-20 | BB-5306C | $16.90 | |
| 30-603d |  | Caster Sw 4″ x 2″ 800 Lb Brake | $216.00 | | |
| 30-903a |  | Spring 5.5″ long | O-4903A | $34.35 | |
| 30-910 |  | 1 3/4″ Long x 1/2″ OD Spring M | $12.00 | | |
| 30-910aab |  | 3″ Long x .75 OD Spring | O-4910AAB | $22.99 | |

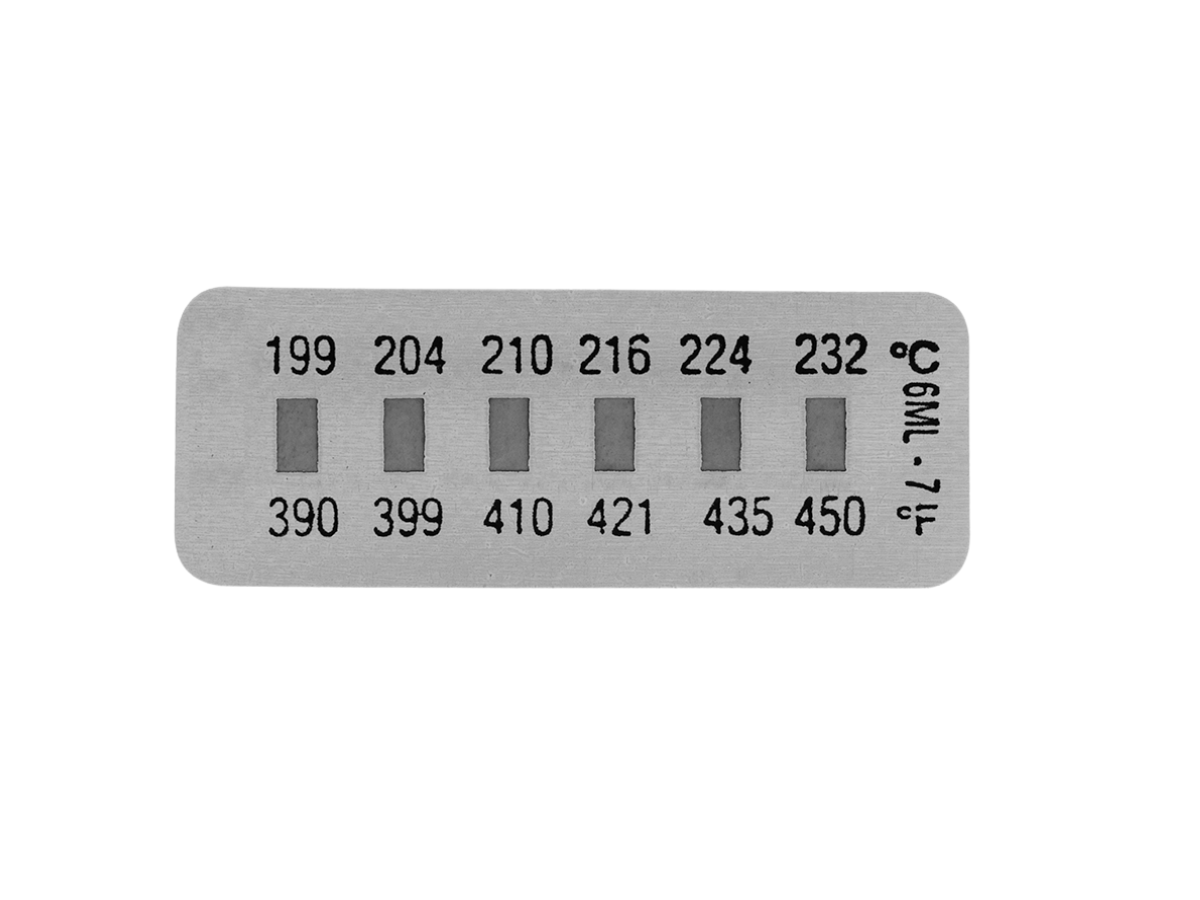

| 40-301 |  | Pack of Temperature Strips 40pcs. 350F-420F | CRRI-01 | $40.00 | |
| 50-142 |  | Teflon 34″F x 48″F OK-160TB | $303.16 | | |
| 50-205a | Woven Cover Complete | $228.00 | | ||
| 50-306b |  | Flannel Cover 32″ x 42″ | $79.00 | | |
| 50-806a |  | 3/8″ x 36″ Wide Silicone Sponge Rubber on the roll by the foot | BELTROOM | $140.00 | |
| 50-904 |  | Gray Foam Rubber 32″ x 42″ | $95.00 | | |
| 50-904a | | Gray Foam Rubber 32″ x 44″ | $184.00 | | |
| 50-904n | | Gray Foam Rubber matt 42″ x 46″ | $354.00 | | |
| H6126-36WHPJ | Paper copy of manual | $25.00 | |
