Description

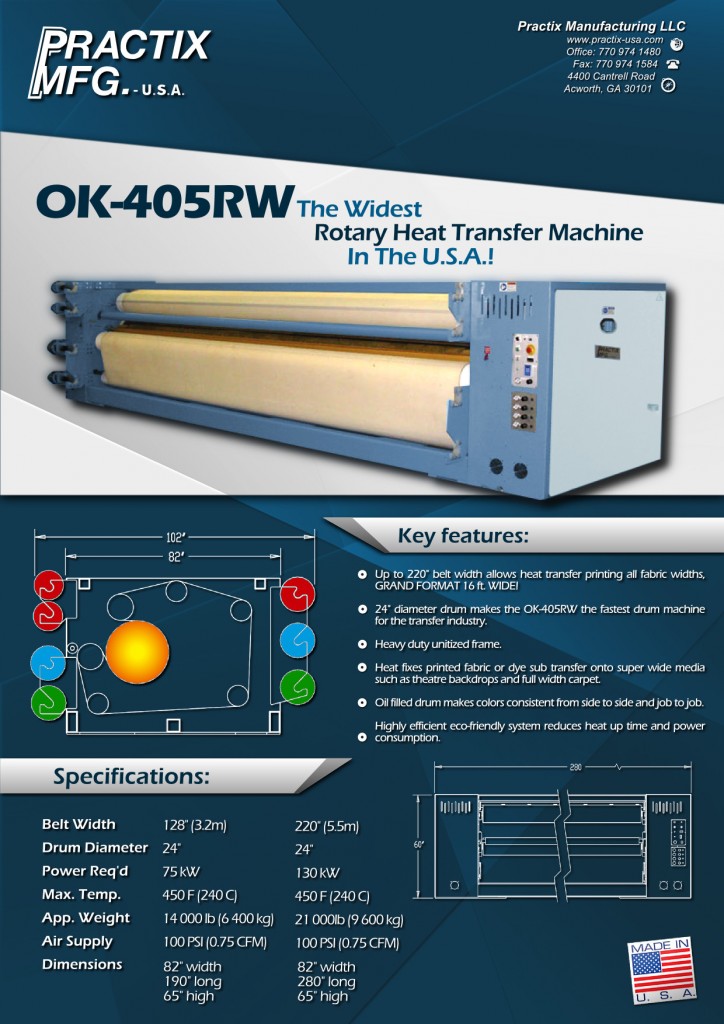

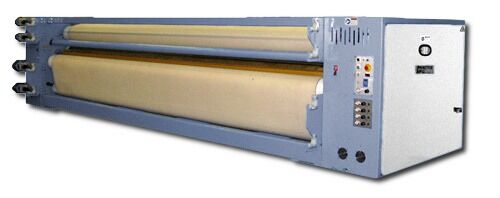

The Practix OK-405RTRW is our super wide, high-speed sublimation rotary press, engineered to accommodate the fastest transfer speeds — up to 220″ belt width (16 ft wide) for dye sublimation paper transfer and direct fabric fixation. The OK-405RW encompasses even heat to ensure color intensity across even wide fabrics utilizing an advanced technology, well engineered oil filled, steel encased heating drum.

Features:

• 128″ and 220″ belt widths for grand-format fabric printing
• 24″ oil-filled, steel-encased heating drum — engineered for faster transfer speeds
• Automatic belt tracking system
• Oil-filled drum for consistent color side-to-side and job-to-job
• 7″ touch screen interface of all mechanical functions, providing intuitive user control and savable settings for consistent production
• Digital temperature controller with PID and auto-tune
• Standard triple unwind/rewind system for roll-to-roll transfer printing
• Pneumatic brakes and clutches for precise fabric and paper tensioning
• Reversing capability
• Safety systems (emergency stops and hand protection at entry)
• Automatic cool down

As an added benefit, the OK-405RW sublimation machine was ergonomically designed to reduce operator fatigue and boost productivity. The machine’s rewind and unwind stations were placed at a height that virtually eliminates the lifting of heavy rolls of per or fabric overhead. Furthermore, the input conveyor is low to the ground for even more convenience.

All of these advances – combined with the quality, forged steel frame, one-year mechanical warranty, and six-month electrical warranty – make this sublimation machine an unbeatable value.

Call or e-mail us today to learn about all of our quality heat transfer machinery available to your business anywhere in the world.
