Description

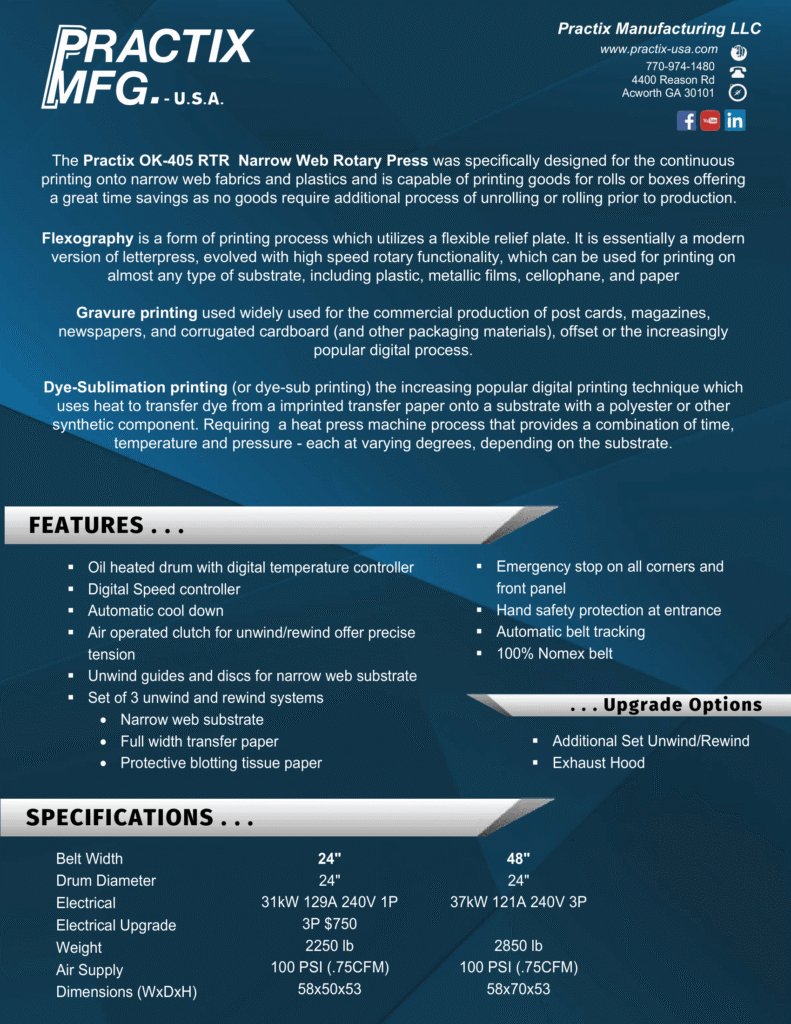

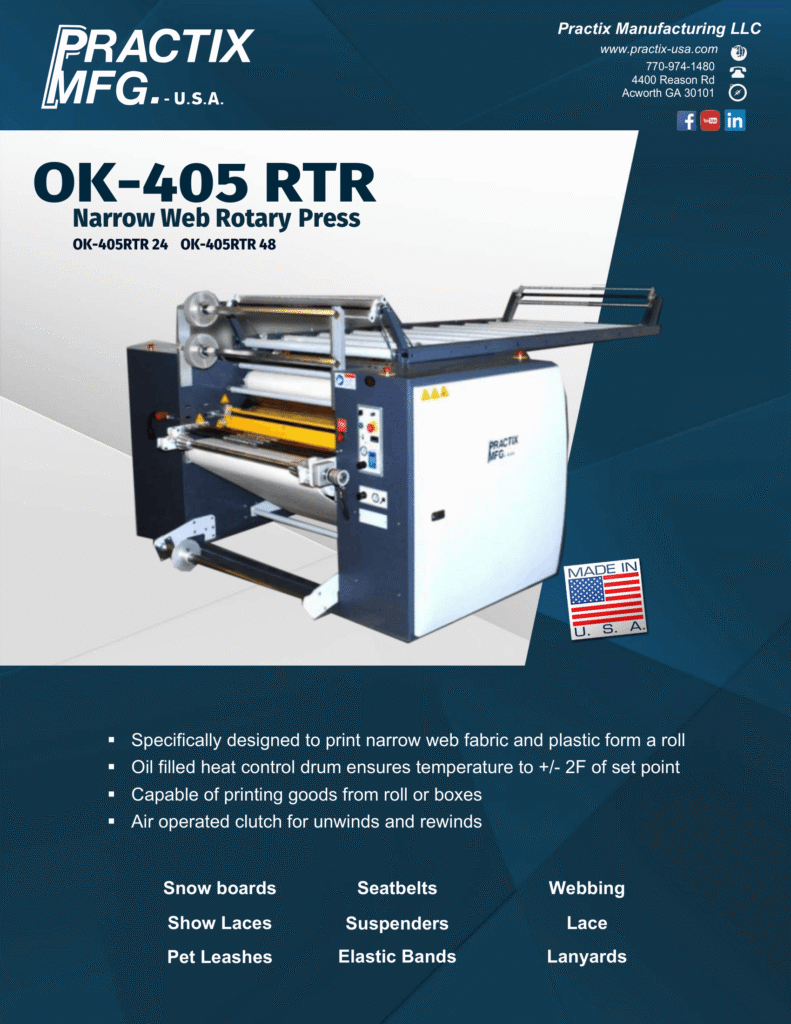

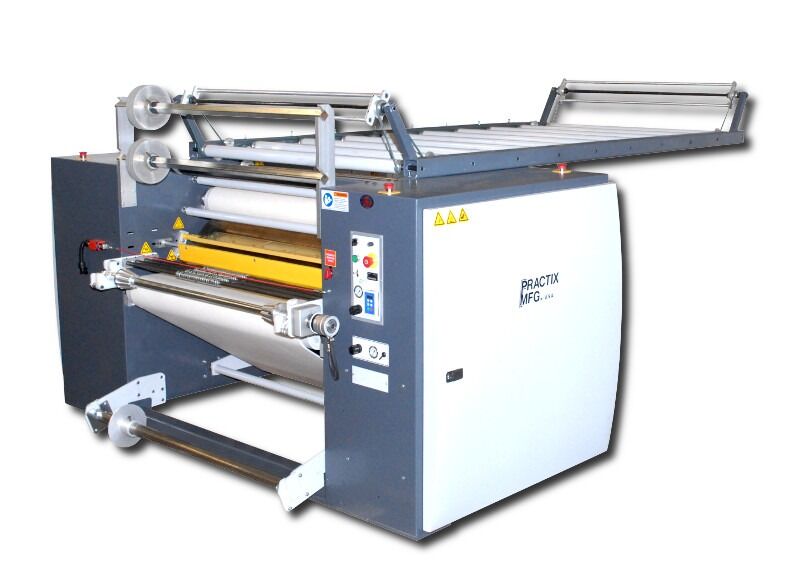

The OK-405RTR-NW is a narrow web rotary transfer machine purpose-built to print narrow web fabrics and plastics from a roll.  This machine provides steel encased, oil filled heated drum, producing constant and even color transfer for high-speed, continuous fabric sublimation. Includes belt sizes from 24” and 48” and multiple lanes for your narrow web substrate and printed transfer paper hot off the flexo, gravure, offset or the increasingly popular digital press. The unique Practix channel tracking technology keeps the belt centered on the large 24” diameter drum, avoiding costly delays. Furthermore, the dual unwind system allows the loading of more paper without stopping. This keeps the job rolling as long as you need and saves you valuable time and money.

The OK-405RTR offers even more features including:

• 24″/48″ belt widths
• 24″ diameter drum oil-filled drum for consistent color for the length of the job
• Automatic belt tracking system
• 4″ touch screen interface of all mechanical functions, providing intuitive user control and savable settings for consistent production
• Standard unwind and rewind for blotting tissue to protect the belt from excess dye
• Exit conveyor height is sufficient for most common trash bins
• Box drop exit conveyor provides a powered take-off of goods for winding and boxing
• Safety systems (emergency stops and hand protection at entry)
• Automatic cool down

All of our heat transfer machinery comes backed with a one-year mechanical warranty and a six-month electrical warranty.

Call or e-mail us today to discuss our affordable fabric sublimation equipment for your business.
