Description

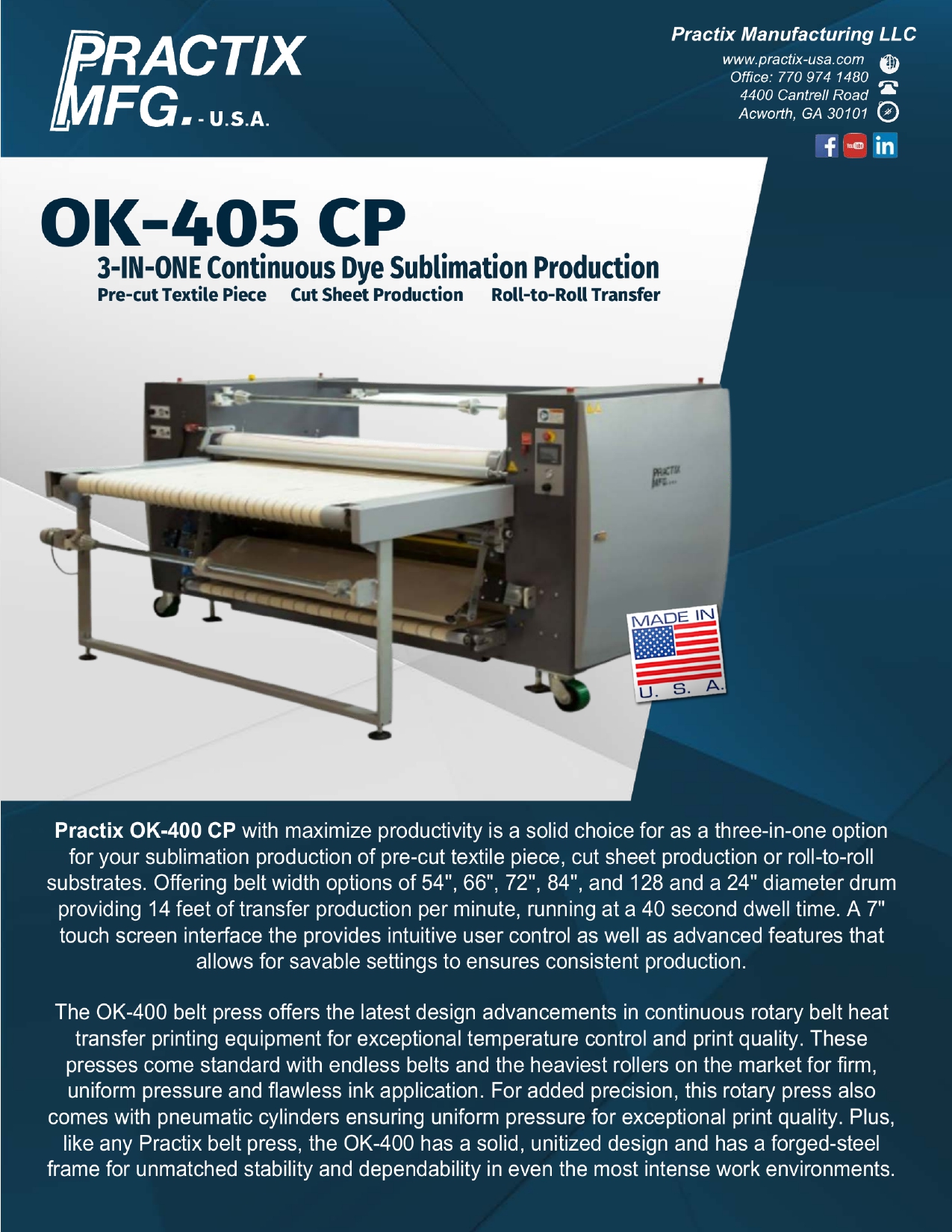

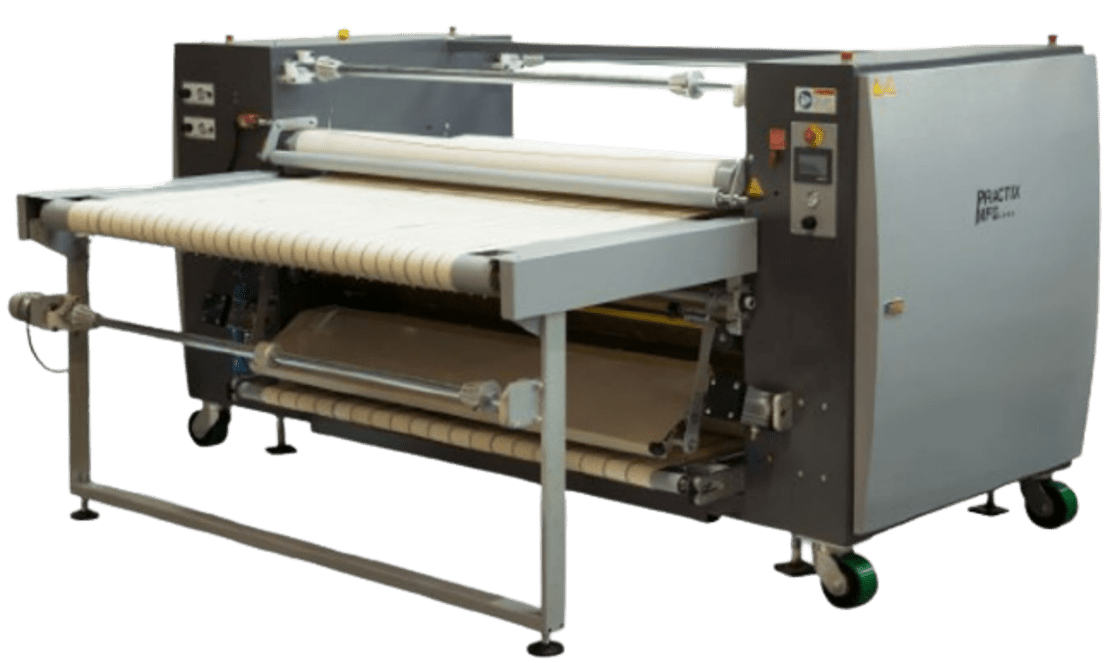

The OK-405CP is a high-performance sublimation press engineered by heat transfer specialists with over 20 years of industry experience. A pivot-system design delivers automatic belt tracking, eliminating wrinkles and ghosting for clean, consistent prints. At the heart of the machine is a steel-encased, oil-filled heated drum that maintains even heat across the full width of the belt — even on wide garments — for reliable, uniform color intensity job after job.

Additional engineering highlights:

• A roller-style enclosed heating assembly that traps hot air inside the drum, holding printing temperature steady
• A torsion bar that maintains even pressure across the belt, preventing bleeding or blow-through for sharper, cleaner prints
• Heavy-duty 7.5″ (190mm) roller bearings on the printing drum for quieter, smoother rotation

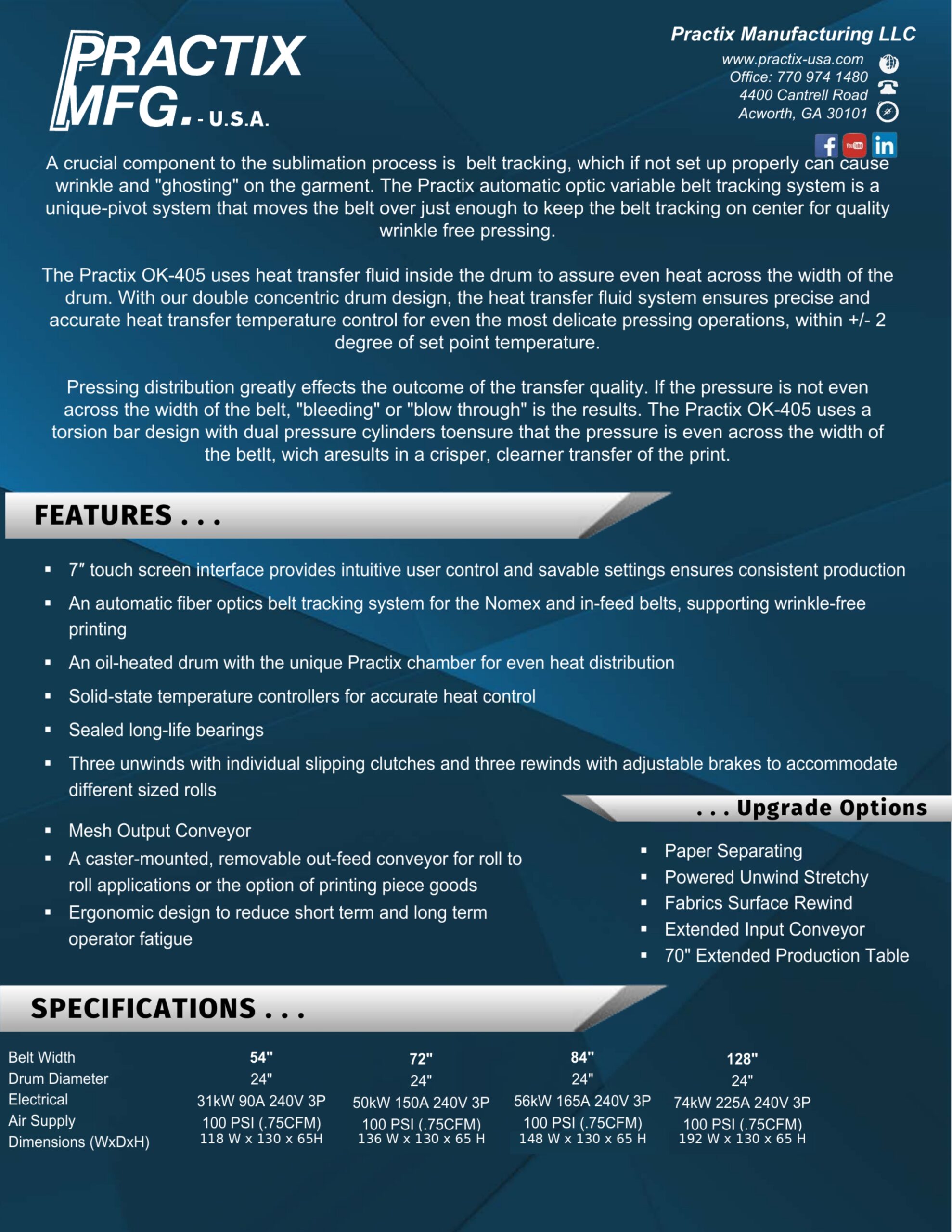

Features:

• 42″/60″/72″/84″/128″ belt widths for printing on full-width fabrics
• 24″ diameter oil-filled, steel-encased drum with pivot-system automatic belt tracking
• Automatic belt tracking system
• Oil-filled drum for consistent color side-to-side and job-to-job
• 7″ touch screen interface of all mechanical functions, providing intuitive user control and savable settings for consistent production
• Digital temperature controller with PID and auto-tune

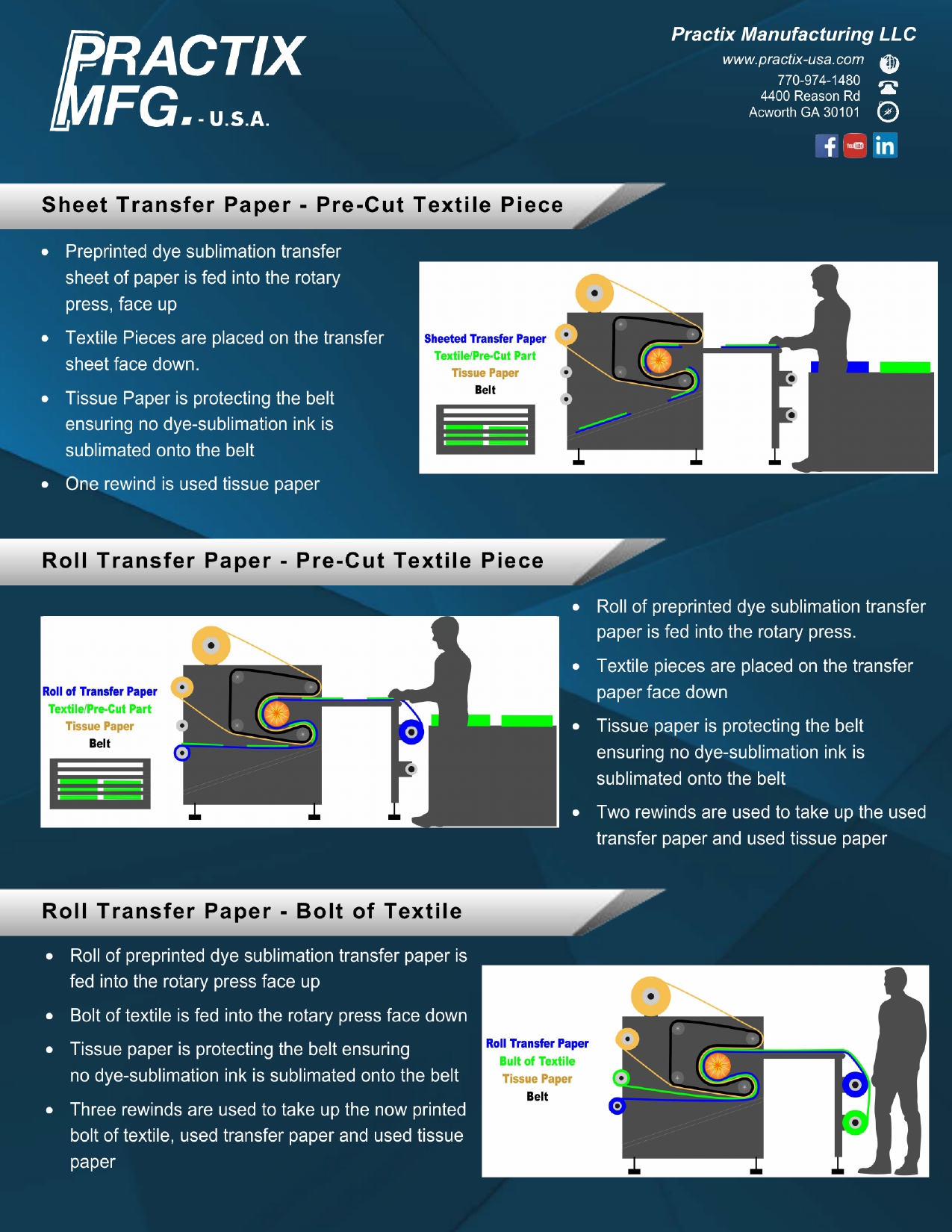

• Standard triple unwind/rewind system for roll-to-roll transfer printing
• Pneumatic brakes and clutches for precise fabric and paper tensioning
• Reversing capability
• Safety systems (emergency stops and hand protection at entry)
• Automatic cool down

As an added benefit, the OK-405CP sublimation machine was ergonomically designed to reduce operator fatigue and boost productivity. The machine’s rewind and unwind stations were placed at a height that virtually eliminates the lifting of heavy rolls of per or fabric overhead. Furthermore, the input conveyor is low to the ground for even more convenience.

All of these advances – combined with the quality, forged steel frame, one-year mechanical warranty, and six-month electrical warranty – make this sublimation machine an unbeatable value.

Call or e-mail us today and let us consult you on the right sublimation printer for your needs.
