Description

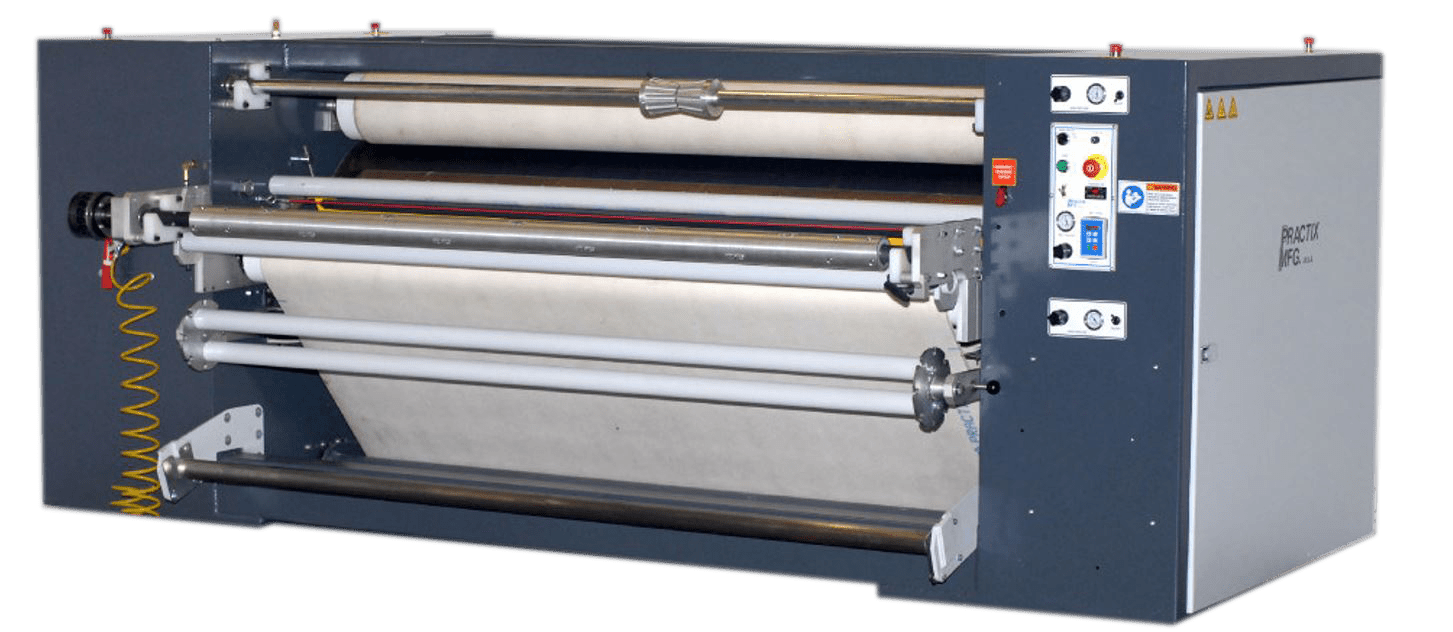

The OK-400RTR belt press offers the latest design advancements in continuous rotary belt heat transfer printing equipment for exceptional temperature control and print quality. These presses come standard with endless belts and the heaviest rollers on the market for firm, uniform pressure and flawless ink application. For added precision, this rotary press also comes with pneumatic cylinders, ensuring uniform pressure for exceptional print quality. Plus, like any Practix belt press, the OK-400RTR has a solid, unitised design and has a forged-steel frame for unmatched stability and dependability in even the most intense work environments.

More benefits of the OK-400RTR rotary belt press include:

• 72″, 84″, and 128″ belt widths for printing on full-width fabrics
• 40″ and 60″ diameter drums for extremely high-speed transferring
• Automatic belt tracking system
• Oil-filled drum for consistent color side-to-side and job-to-job
• 7″ touch screen interface of all mechanical functions, providing intuitive user control and savable settings for consistent production
• Digital temperature controller with PID and auto-tune

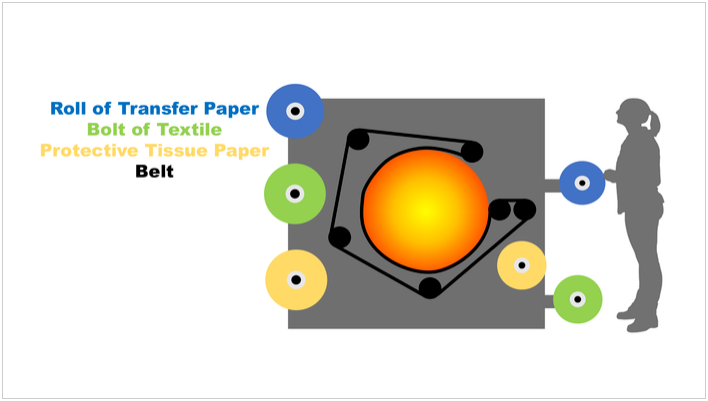

• Standard triple unwind/rewind system for roll-to-roll transfer printing
• Pneumatic brakes and clutches for precise fabric and paper tensioning
• Reversing capability
• Safety systems (emergency stops and hand protection at entry)
• Automatic cool down

All of our machines, including the OK-400RTR Roll to Roll Heat Transfer Press, come backed by a one-year mechanical and electrical warranty.

We service businesses worldwide, so call or e-mail us today and let us consult you on the right sublimation printer for your needs.
