Description

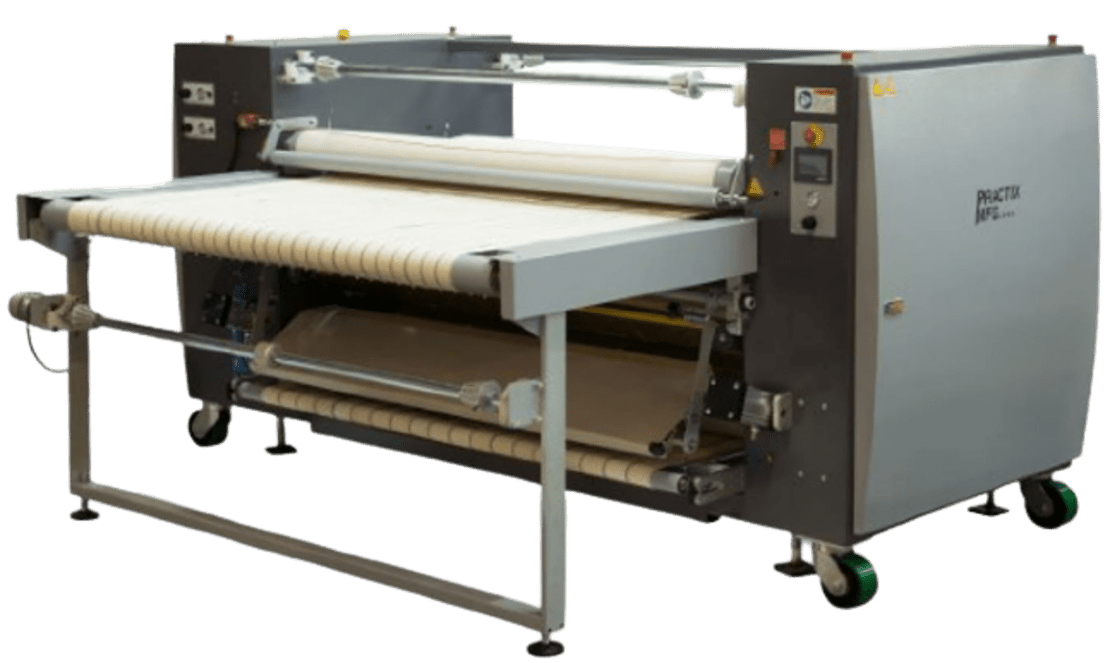

The OK-400CP is a high-speed cut-parts rotary belt press built for the most demanding continuous transfer production. Endless belts and the heaviest rollers in its class deliver firm, uniform pressure for flawless ink application, backed by pneumatic cylinders that ensure consistent pressure across every run. An automatic fiber-optic belt tracking system keeps both the Nomex and in-feed belts running wrinkle-free, while an oil-heated drum with Practix’s unique chamber design maintains even heat distribution and solid-state temperature controllers hold precise heat control. Sealed long-life bearings and a caster-mounted, removable out-feed conveyor support both roll-to-roll and piece-goods production, and the ergonomic design reduces operator fatigue on long runs. Available with 40″ or 60″ diameter drums and 72″, 84″, or 128″ belt widths, the OK-400CP is built on a forged-steel, unitized frame for unmatched stability and backed by a one-year mechanical and six-month electrical warranty.

Features:

• 72″/84″/128″ belt widths for printing on full-width fabrics
• 40″ and 60″ diameter drums for extremely high-speed transferring
• Automatic belt tracking system
• Oil-filled drum for consistent color side-to-side and job-to-job
• 7″ touch screen interface of all mechanical functions, providing intuitive user control and savable settings for consistent production
• Digital temperature controller with PID and auto-tune
• Standard triple unwind/rewind system for roll-to-roll transfer printing
• Pneumatic brakes and clutches for precise fabric and paper tensioning
• Reversing capability
• Safety systems (emergency stops and hand protection at entry)
• Automatic cool down

All of our machines, including the OK-400CP dye sublimation printer, come backed by a one-year mechanical and six-month electrical warranty.

Call or email us today and let us consult you on the right sublimation printer for your needs.
