Description

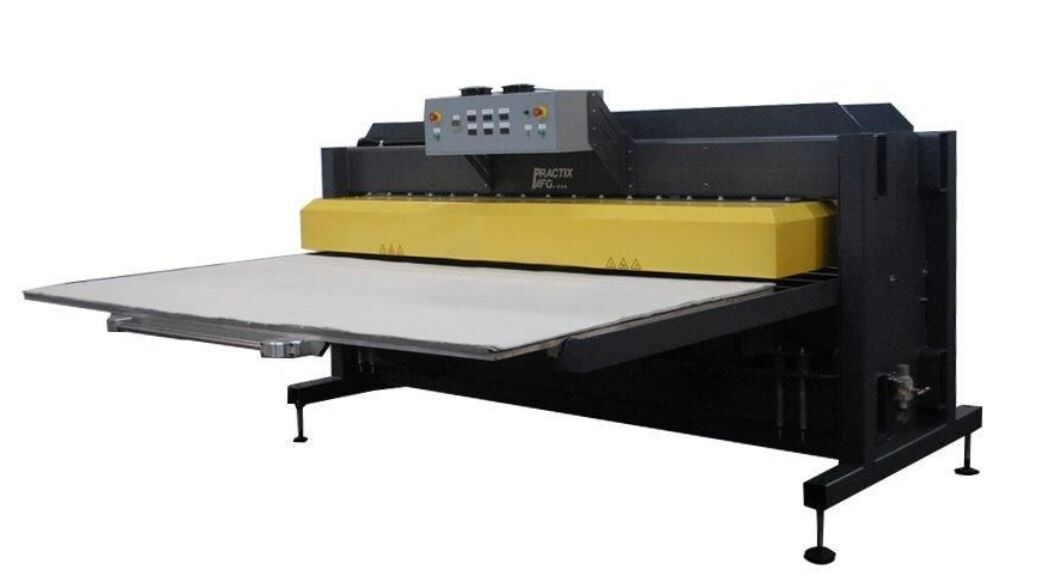

The Practix OK-160SB is a 60″ x 108″ (5′ x 9′) industrial heat press built for high-pressure dye sublimation, transfer printing, and fusing.

Loading is fast and safe: a single front-loading table slides away from the heat source for easy, low-effort loading, and a high-pressure, self-leveling pneumatic lift raises the bottom plate to meet the top heater plate. Dual push close and start controls ensure safe operation, with automatic release at the end of each cycle.

Premium mica thermic heaters with high watt density minimize thermal lag, while a digital PID temperature controller with auto-tune and six independently controlled heating zones maintain consistent heat across the entire platen for every cycle.

Key features:

• 100% Made in the USA
• Heavy-duty flatbed press for dye sublimation
• Single front-loading table on slides for easy, low-effort loading
• Dual push close/start with automatic end-of-cycle release
• Self-leveling pneumatic lift of bottom plate
• Digital PID temperature controller with auto-tune
• Six independently controlled heating zones for consistent heat
• Premium mica thermic heaters, high watt density
• 40 ton (80,000 lbs) or 20 ton (40,000 lbs) of force
• Adjustable pressure regulator with gauge
