OK-12RTR

OK-12RTR

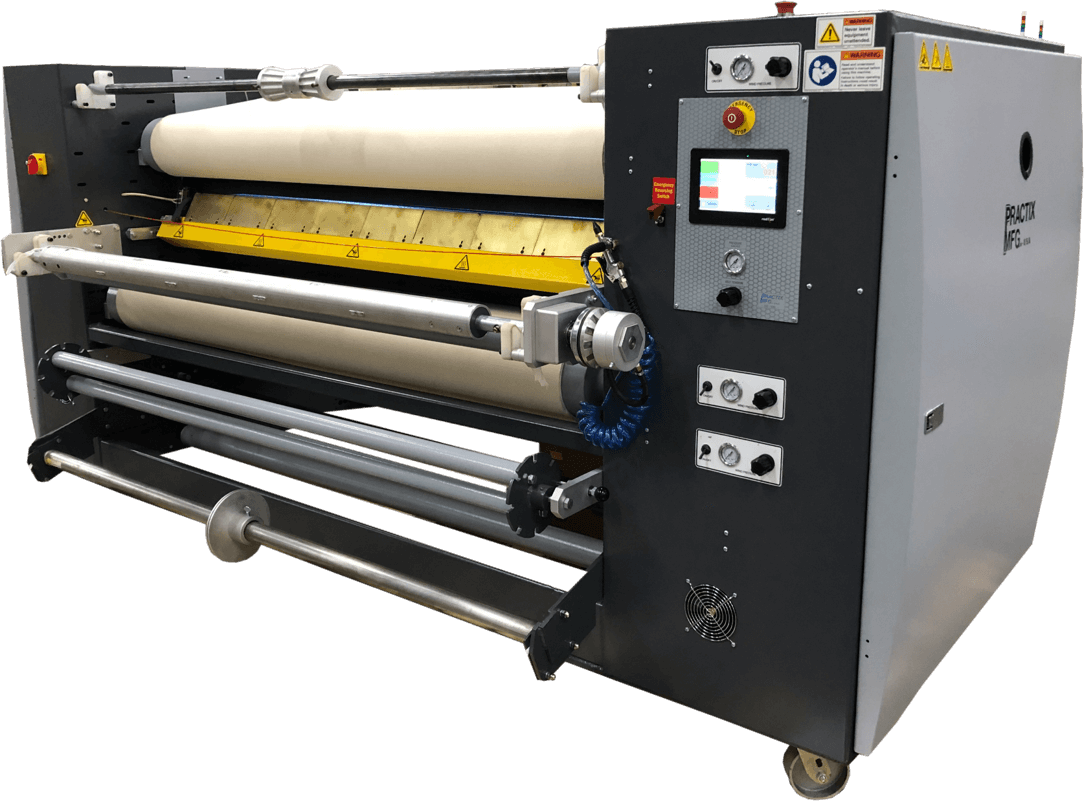

Practix Manufacturing’s OK-12RTR is one of the most advanced heat transfer machines currently available. With a heavy-duty unitized frame, 12” diameter drum, and varying belt widths that allow for printing on fabrics of all sizes, the OK-12RTR is a heat transfer press that is unlike anything else in its class.

Rotary Press – Roll to Roll Application
Dye Sublimation Paper Transfer & Direct Fabric Fixation
12″ Diameter Drum
66″/88″/104″/128″ Belt Widths

Description

Practix Manufacturing’s OK-12RTR is one of the most advanced heat transfer machines currently available. With a heavy-duty unitized frame, 12” diameter drum, and varying belt widths that allow for printing on fabrics of all sizes, the OK-12RTR is a heat transfer press that is unlike anything else in its class. This model can be used for transferring on continuous or roll materials or an optional table is a feature for cut part or piece goods. Practix rotary product lines include high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.

The Practix OK-12RTR commercial heat press features the following:

  • 66”, 88”, 104″, and 128″ belt widths allow for printing on full-width fabrics
  • 12” (300mm) diameter drum makes it the fastest small drum rotary transfer printing machine on the market
  • A heavy-duty unitized frame with solid steel construction
  • Oil-filled drum enables colors to print consistently from side-to-side, as well as job-to-job
  • Standard triple unwind/rewind system for transfer printing from roll-to-roll
  • Pneumatic brakes and clutches for precise tensioning of fabric and papers
  • Ability to print banners, exhibit backdrops, sportswear, and casino felts with ease

Perfect for printing on a wide variety of materials, the OK-12RTR can produce beautiful, flawless designs for t-shirts, sportswear, display banners, awnings, floor mats, mouse pads, upholstery, and more. As an added bonus, Practix is one of the only heat transfer equipment manufacturers to offer fully customizable options for modified, colors, shapes, sizes, and more.


BELT WIDTH 66″ (1.67m) 88″ (2.25m) 104″ (2.64m) 128″ (3.25m)
POWER REQD 19kW 78A 240V 1P 25kW 76A 240V 3P 31kW 90A 240V 3P 37kW 120A 240V 3P
MAX TEMP 450F 450F 450F 450F
APPROX WEIGHT 3200LB (1451Kg) 3400LB (1542Kg) 3600LB (1632 Kg) 3900LB (1775 Kg)
AIR SUPPLY 100 PSI 1 CFM 100 PSI 1 CFM 100 PSI 1 CFM 100 PSI 1 CFM
DIMENSIONS 102x58x63 124x58x63 140x58x63 116x58x63


Contact Practix Manufacturing today at 1-770-974-1480 to learn more about the various types of equipment we offer or to order the OK-12RTR heat transfer press for your business. Serving businesses across the globe, we will gladly hand-deliver or ship to companies worldwide.
