OK-12CP

OK-12CP

OK-12CP



Digital Dye-Sub Rotary Transfer Machine
Cut Parts and roll to roll applications
12″ Diameter Drum
66″/88″/104″/128″ Belt Widths

Categories , , , Tags , , , , ,

Description

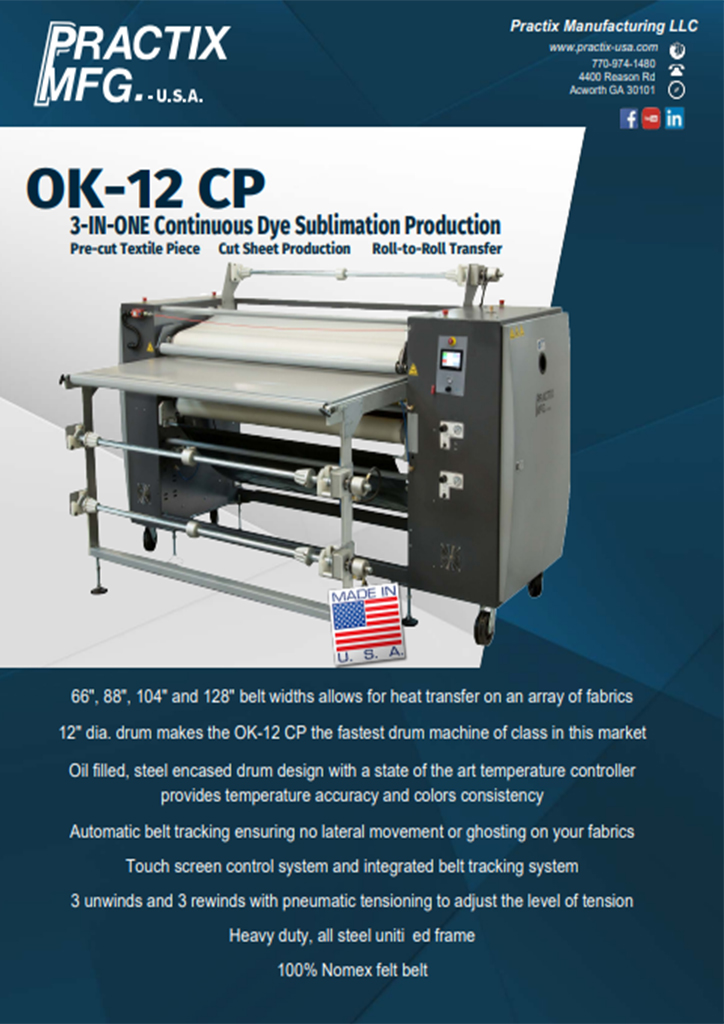

Practix Manufacturing’s OK-12CP is one of the most advanced heat transfer machines currently available. With a heavy-duty unitized frame, 12” diameter drum, and varying belt widths that allow for printing on fabrics of all sizes, the OK-12CP is a heat transfer press that is unlike anything else in its class. This model can be used for transferring on continuous or roll materials or an optional table is a feature for cut part or piece goods. Practix rotary product lines include high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.

Features:

  • 66″/88″/104″/128″ belt widths for printing on full-width fabrics
  • 12″ (305mm) drum diameter — the fastest small-drum rotary transfer press on the market
  • Automatic belt tracking system
  • Oil-filled drum for consistent color side-to-side and job-to-job
  • 7″ touch screen interface of all mechanical functions, providing intuitive user control and savable settings for consistent production
  • Digital temperature controller with PID and auto-tune
  • Standard triple unwind/rewind system for roll-to-roll transfer printing
  • Pneumatic brakes and clutches for precise fabric and paper tensioning
  • Reversing capability
  • Safety systems (emergency stops and hand protection at entry)
  • Automatic cool down

Perfect for printing on a wide variety of materials, the OK-12CP can produce beautiful, flawless designs for t-shirts, sportswear, display banners, awnings, floor mats, mouse pads, upholstery, and more.

Contact Practix Manufacturing today at 1-770-974-1480 to learn more about the various types of equipment we offer or to order the OK-12CP heat transfer press for your business.



BELT WIDTH 66″ (1.67m) 88″ (2.25m) 104″ (2.64m) 128″ (3.25m)
POWER REQD 18.6 KW 24.8 KW 31 KW (32 KW 3PH) 37.2 KW (40 KW 3PH)
MAX TEMP 450F 450F 450F 450F
APPROX WEIGHT 3200LB (1451 Kg) 3400LB (1542 Kg) 3600LB (1632 Kg) 3900LB (1775 Kg)
AIR SUPPLY 100 PSI 0.8 CFM 100 PSI 0.8 CFM 100 PSI 0.8 CFM 100 PSI 0.8 CFM
DIMENSIONS 58″ W 102″ L 63″ H 58″ W 124″ L 63″ H 58″ W 140″ L 63″ H 58″ W 164″ L 63″ H



All of our machines, including the OK-12CP dye sublimation printer, come backed by a one-year mechanical and six-month electrical warranty. Plus, Practix machines are fully customizable to meet the size and color requirements of your facility.

Call or e-mail us today and let us consult you on the right sublimation printer for your needs.
