Description

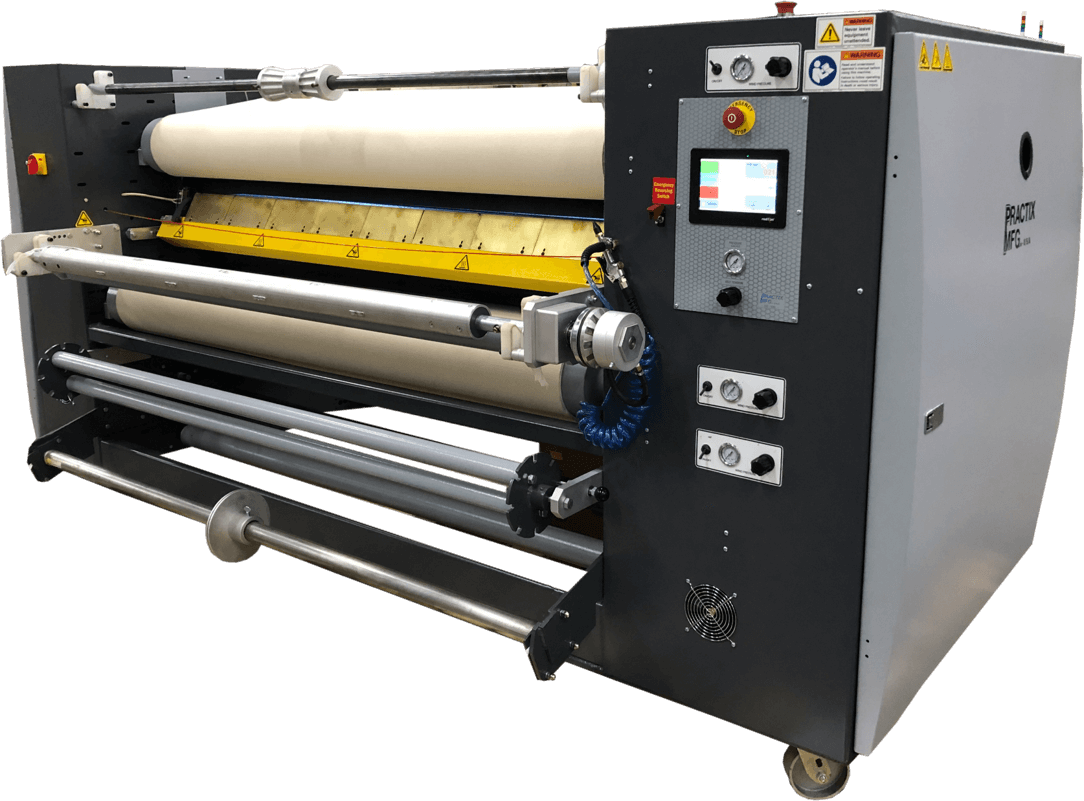

The Practix dye sublimation rotary heat model OK-10RTR is available in 48” or 66” wide printable widths. The oil-filled heated drum is 10″ (250 mm) in diameter and has 240 degrees of wrap, achieving faster production speeds than most comparable models. This model can be used for transferring continuous or roll materials. This heat transfer machine is small and affordable, offering the Practix high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.



Maximum Productivity: 44″ & 66″ Printable width Larger 10″ diameter drum for faster production speeds 240 degrees or 21″ of production contact Oil-filled drum for consistent heat throughout the width of the drum Automatic belt tracking Quick heat up

Key Features: 4″ touch screen control for all machine functions, with recipe setup programs Digital speed controller 2 unwinds / 2 rewinds with independent pneumatic tension/brake adjustment 1 unwind / 1 rewind for tissue paper to protect the belt on cut parts or mesh fabric 3″ chucks for all unwind and rewind shafts Reversing capability Safety systems (emergency stops and hand protection at entry) Automatic cool down

Specifications of the OK-10RTR include: Belt Width 48” (1200mm) / 66” (1700mm) Drum Diameter 10” (250mm) Max. Temperature 450°F (240 °C)* Max. Belt Speed 5 ft/min (1.5 m/min) Power Supply 12 kW/ 13kW Motor 1/4 H.P Air Supply 100 PSI 0.5CFM Weight 2000 lb (900 kg) 2400 lb (1089 kg



All of our machines, including the OK-10RTR dye sublimation heat transfer machine, come backed by a one-year mechanical and electrical warranty.

Call or  e-mail us today and let us consult with you on the right heat transfer equipment for your needs.
