OK-10CP

OK-10CP

OK-10CP

Digital Dye-Sub Rotary Transfer Machine
Cut Parts and roll to roll applications
10″ Diameter Drum
48”/66” Belt Widths

Categories , , , Tags , , , , ,

Description

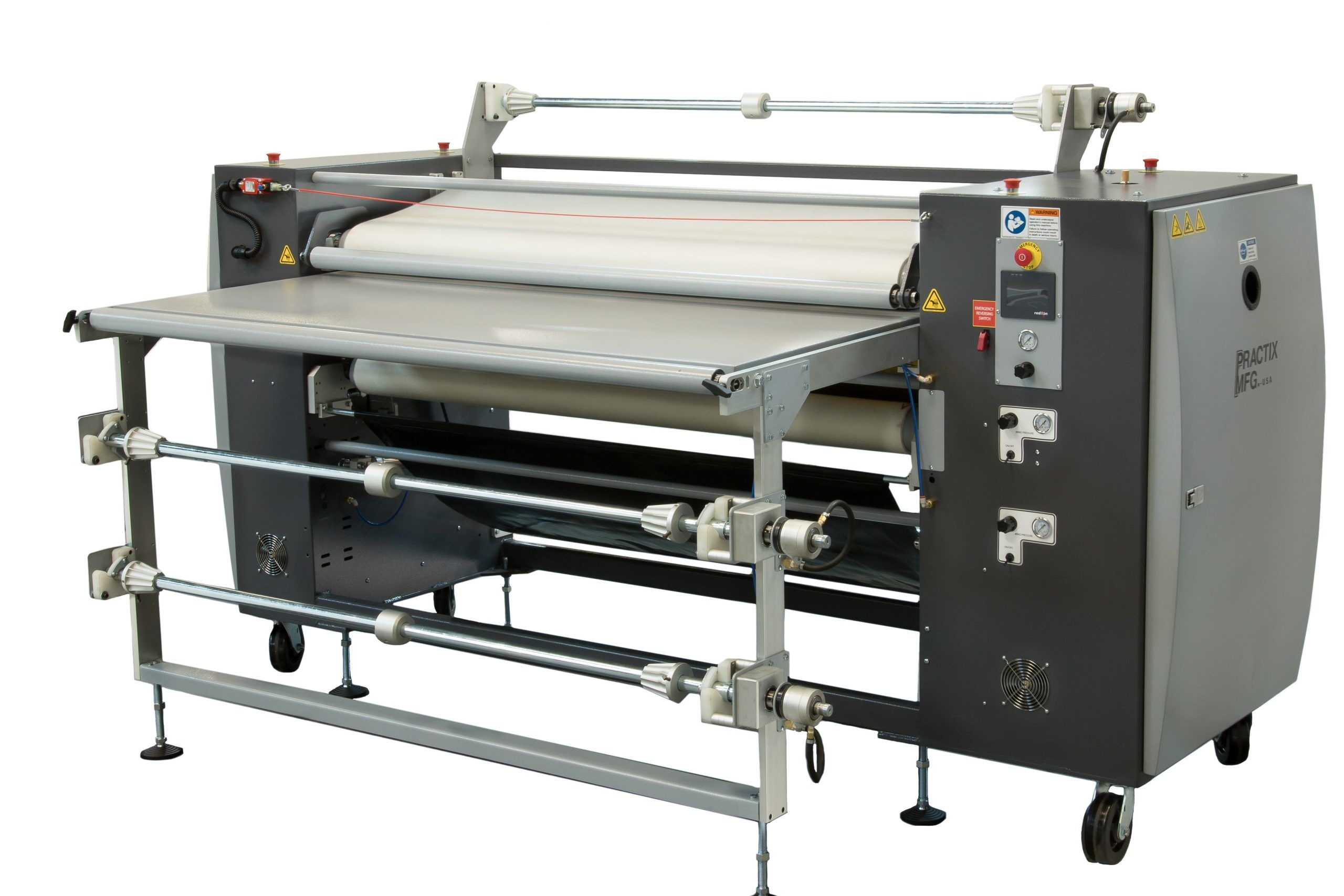

The OK-10CP is a digital dye-sublimation rotary transfer press built for both cut-part and roll-to-roll production, giving smaller and mid-size shops flexibility as their sublimation needs grow. This heat transfer machine is small and affordable, offering the Practix high-quality quality innovative, engineered design using a heavy-duty frame, automation, and best-quality electrical and pneumatic components, like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.

Maximum Productivity:

  • 48″/66″ Printable width
  • Larger 10″ diameter drum for faster production speeds
  • 240 degrees or 21″ of production contact
  • Oil filled drum for consistent heat throughout the width of the drum
  • Automatic belt tracking
  • Quick heat up

Key Features:

  • Touch screen control for all machine functions with program for recipes
  • Digital speed controller
  • 2 unwinds/2 rewinds with independent pneumatic adjusting for more tension or brake
  • 1 unwind/1 rewind to utilize tissue paper for protection of the belt for cut parts or mesh fabric
  • 3″ chucks for all unwind and rewind shafts
  • Reversing capability
  • Safety systems (emergency stops and hand protection at entry)
  • Automatic cool down

Specifications of the OK-10 include:

  • Belt Width 48” (1.2 m) / 66” (1.6 m)
  • Drum Diameter 10” (250mm)
  • Max. Temperature 450 F (240 C)*
  • Max. Belt Speed 5 ft/min (1.5 m/min)
  • Power Supply 12.5 kW/14 kW
  • Motor 1/4 H.P
  • Air Supply 100 PSI 0.5CFM
  • Weight 2200 lb (998 kg) 2835 lb (1286 kg)

All of our machines, including the OK-10CP dye sublimation printer, come backed by a one-year mechanical and six-month electrical warranty. Plus, Practix machines are fully customizable to meet the size and color requirements of your facility.

We service businesses worldwide. Call or e-mail us today and let us consult you on the right sublimation printer for your needs.
