OK-07CP

OK-07CP

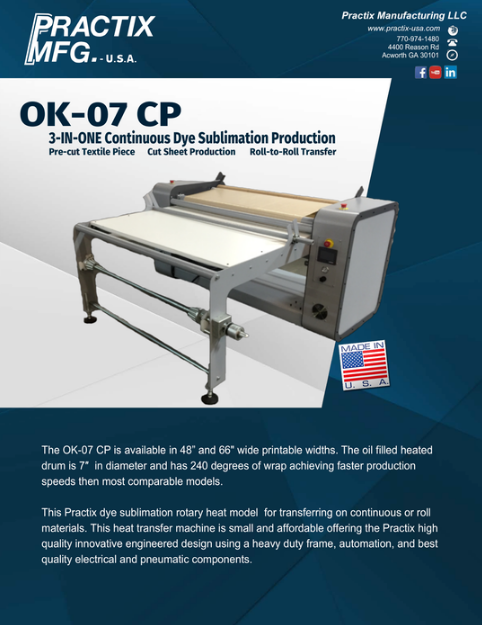

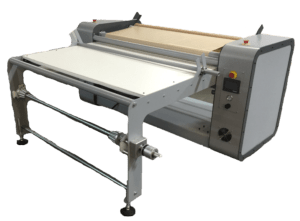

The Practix dye sublimation rotary heat model OK-07CP is available in 48” or 66” wide printable widths. The oil-filled heated drum is 7″ (178 mm) in diameter and has 240 degrees of wrap, achieving faster production speeds than most comparable models.

Digital Dye-Sub Rotary Transfer Machine
Roll to roll applications
7″ Diameter Drum
48″/66” Belt Widths

Description

The Practix dye sublimation rotary heat model OK-07CP is available in 48” or 66” wide printable widths. The oil-filled heated drum is 7″ (178 mm) in diameter and has 240 degrees of wrap, achieving faster production speeds than most comparable models. This model can be used for transferring continuous or roll materials. This heat transfer machine is small and affordable, offering the Practix high-quality innovative, engineered design using a heavy-duty frame, automation, and best quality electrical and pneumatic components, like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.



Maximum Productivity:

  • 48″/66″ Printable width
  • 7″ diameter drum
  • 240 degrees or 21″ of production contact
  • Oil-filled drum for consistent heat throughout the width of the drum
  • Automatic belt tracking
  • Quickly heat up

Key Features:

  • 4″ Touch screen control for all machine functions and programs for recipe setup
  • Digital speed controller
  • 2 unwinds/2 rewinds with independent pneumatic adjusting for more tension or brake
  • 3″ chucks for all unwind and rewind shafts
  • Reversing capability
  • Safety systems (emergency stops and hand protection at entry)
  • Automatic cool down

Specifications of the OK-07CP include:

  • Belt Width 48” (1200mm) / 66” (1700mm)
  • Drum Diameter 7” (178 mm)
  • Max. Temperature 450 F (240 °C)*
  • Max. Belt Speed 5 ft/min (1.5 m/min)
  • Power Supply 12 kW/ 13kW
  • Motor 1/4 H.P
  • Air Supply 100 PSI 0.5CFM
  • Weight 2000 lb (900 kg) 2400 lb (1089 kg)

All of our machines, including the OK-07CP dye sublimation heat transfer machine, come backed by a one-year mechanical and six-month electrical warranty. Plus, Practix machines are fully customizable to meet the size and colour requirements of your facility.

We service businesses worldwide.  Call or  e-mail us today and let us consult you on the right sublimation printer for your needs.
