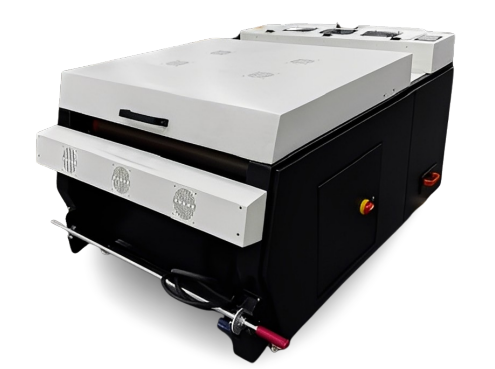

DTF Shaker Oven
The Practix OK-700 is engineered for industrial DTF operations that demand consistent curing, smart automation, and long-term dependability. Manufactured entirely in the USA, it delivers the perfect blend of precision heating, intelligent control, and safety—backed by Practix’s renowned reliability.
Advanced Performance & Control Features
Solid State Temperature Control – Maintains exact curing temperature.
Efficient Quartz Heater & Convection Recirculation – Even heat distribution across 40”.
Sensory System – Includes automatic powder feeder fault shutoff, automatic beater bar shutoff, and power chamber safety switch with emergency shutdown protection.
Auto Tension & Take-Up – Ensure precise film alignment and curing speed. Intelligent feed control for flawless tension, smooth vacuum transport, and seamless handling of both roll and cut film. Auto Take-Up System — Smart photo eye technology keeps the belt perfectly in sync with your printer.
Vacuum Hold System – Secures film for flawless, professional output.
4.3”Touchscreen Interface – Centralized control, real-time diagnostics, identify/reset errors.
Integrated Air Purification – HEPA and charcoal filters for a clean workspace.
Flip-Up Front Work Table – Quick mid-process adjustments with zero waste.
Off Lead Setting – Completes final prints without continuous film feed.
Intelligent OMRON™ Heater Control – Optimize energy usage.
Technical Specifications
Film Width
40 Inches (Max)
Heat Drying Chamber Length
48 Inches
Heating System
Efficient Quartz Heater, Convection Recirculation
Filtration
Internal HEPA and Charcoal Filtration
Dimensions (L x W x H) /Crated
75” long x 52” wide x 42” high/86” long x 63” wide x 51” high
Weight/Crated
1050 lbs/1200 lbs
Control System
4.3” Touchscreen, Solid State OMRON Controls
Electrical
9.6 KW, 240 Volt, 40 Amps, 1 Phase
Start-Up
Shipped Crated and Ready for Operation
Warranty
One-Year Mechanical, Six-Month Electrical
Technical Specifications
Film Width
Heat Drying Chamber Length
Heating System
Filtration
Dimensions (L x W x H) /Crated
Weight/Crated
Control System
Electrical
Start-Up
Warranty
40 Inches (Max)
48 Inches
Efficient Quartz Heater, Convection Recirculation
Internal HEPA and Charcoal Filtration
75” long x 52” wide x 42” high/86” long x 63” wide x 51” high
1050 lbs/1200 lbs
4.3” Touchscreen, Solid State OMRON Controls
9.6 KW, 240 Volt, 40 Amps, 1 Phase
Shipped Crated and Ready for Operation
One-Year Mechanical, Six-Month Electrical
